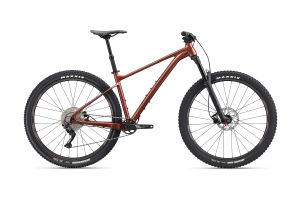

Crank up steep climbs with smooth efficiency. Swoop down singletrack descents with speed and confidence. This hardtail 29er delivers a balanced ride on XC terrain.
Key Performance Factors
Trail tuned design
Balanced geometry with a 75-degree seattube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.
Responsive handling
Lightweight ALUXX SL aluminium hardtail frame offers agile acceleration and manoeuvrability to help riders climb, corner and hammer the flats with efficiency and speed.
Smooth control
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.
Techs & Features
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 38015 | 43016.9 | 46518.3 | 49519.5 |
| B | Seat Tube Angle (degrees) | 75.0° | 75.0° | 75.0° | 75.0° |
| C | Top Tube Length (mm) (inch) | 59223.3 | 61224.1 | 63925.2 | 66226.1 |
| D | Head Tube Length (mm) (inch) | 953.7 | 953.7 | 1054.1 | 1154.5 |
| E | Head Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° |
| F | Fork Rake (mm) (inch) | 441.7 | 441.7 | 441.7 | 441.7 |
| G | Trail (mm) (inch) | 1224.8 | 1224.8 | 1224.8 | 1224.8 |
| H | Wheelbase (mm) (inch) | 115445.4 | 117446.2 | 120347.4 | 122748.3 |
| I | Chain Stay Length (mm) (inch) | 43517.1 | 43517.1 | 43517.1 | 43517.1 |
| J | Bottom Bracket Drop (mm) (inch) | 602.4 | 602.4 | 602.4 | 602.4 |
| K | Stack (mm) (inch) | 62224.5 | 62224.5 | 63124.8 | 64025.2 |
| L | Reach (mm) (inch) | 42516.7 | 44517.5 | 47018.5 | 49019.3 |
| M | Stand Over Height (mm) (inch) | 73028.7 | 74529.3 | 76530.1 | 79031.1 |
| N | Handlebar Width (mm) (inch) | 78030.7 | 78030.7 | 78030.7 | 78030.7 |
| O | Stem Length (mm) (inch) | 401.6 | 401.6 | 502 | 502 |
| P | Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 | 1706.7 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
